Lead-Through Set

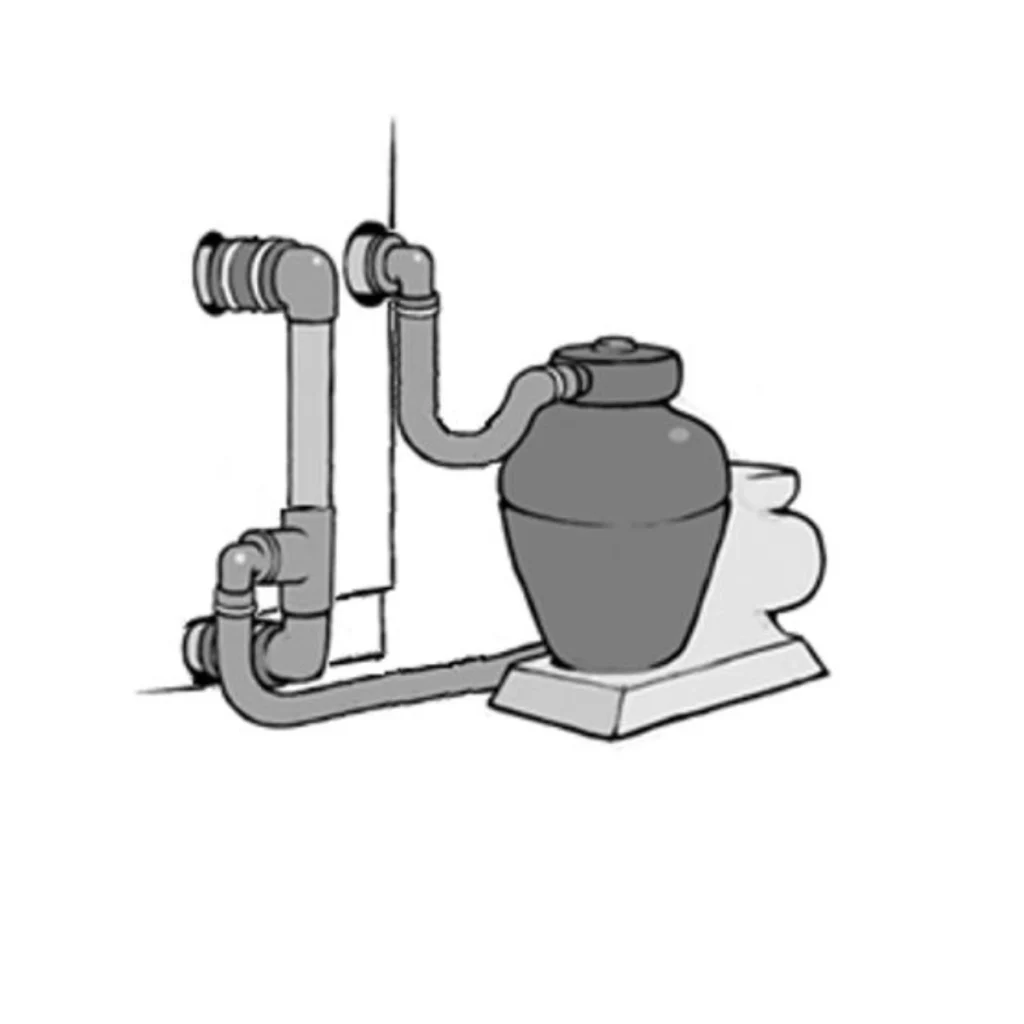

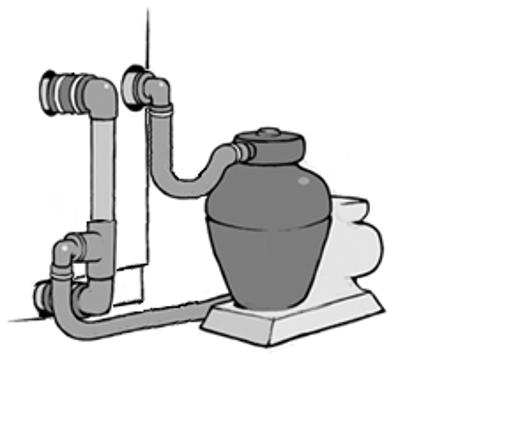

Use the lead-through set for plastic hot tubs without a wood-fired heater when connecting a filter unit to a Kirami hot tub instead of a heater. This setup replaces the heater with a filtration and/or heating system that circulates the water in the tub. This kit makes i possible to have the required two suction outlets inside the tub and one return inlet for the circulating water. The kit includes parts that makes the hose connection possible for 38mm inside diameter hoses for the input and output.

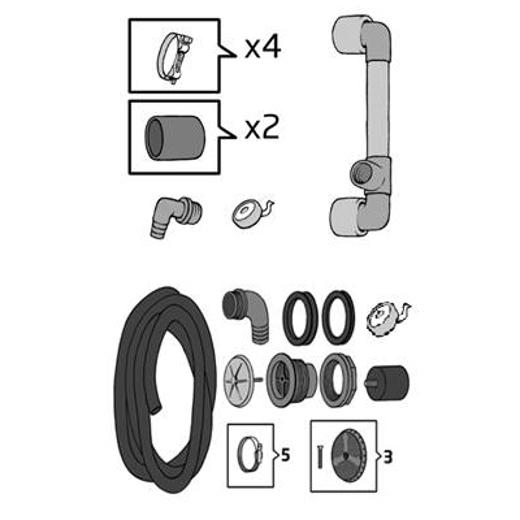

The lead-through series of hot tubs without wood fired heater includes the following parts.

Parts to replace heater lead-throughs:

• Lead-through
• 4 pcs Hose clamp 32-50mm
• 2 pcs rubber hose 10cm 75mm inner dimension
• 1 pcs 1 1/2”uk/38mm hose coupling 90 degrees
• Pipe tape roll

Parts to connect filter unit:

• Lead-in 2½”outer thread x 1½”inner thread (M6 for inner thread plug)
• Gaskets, 3mm and 8mm to the wall
• Nut 2½” inner thread
• 3 pcs protection grid for inlets/outlets in the tub
• 3 pcs M6 bolts for grill installation
• 1 pcs 1 1/2”uk/38mm hose coupling 90 degrees
• Pipe tape roll
• 5 pcs Hose clamp 32-50mm
• Pipe 5m (in one piece, the colour may vary)
• A short discharge plug and lock bolt for discharge.
• Lead-in plug M6 outer thread
