Rocks sold separately. You will need to order 2 boxes (20kg each) of rocks to go with this heater.
You will need to order a North American chimney adapter (4″ to 6″) for this product.
Need help finding the right heater for your sauna? Use our sauna calculator here.
$2,191.95

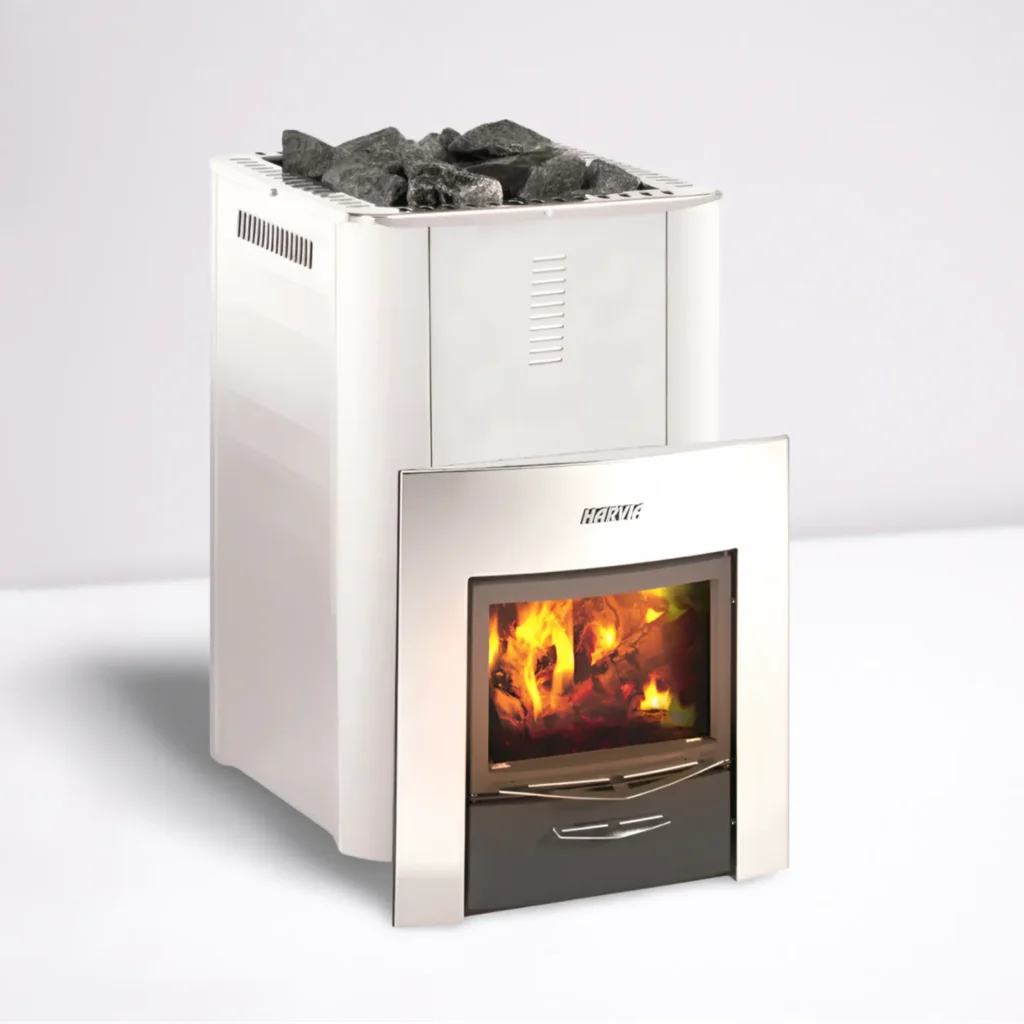

Harvia Pro 20 Duo Steel
Harvia Duo – More atmosphere.
Harvia Pro 20 Duo Steel is a combination of woodburning sauna stove and fireplace. Heat your sauna to bathing temperature and enjoy the warmth of the fire at the same time. Harvia enhances the traditional spirit of the sauna and gives a good, hot bath.
With an outer casing of the stove made of high-quality stainless steel, the Harvia Duo is very durable. The stove has a large, stylish steel-framed glass door. The stove can be equipped with a pipe mounted water heater.
- The recommended size of the sauna room is 283-706 cu. ft. (8–20 m3) and the maximum amount of stones is 88 lbs (40 kg).
Technical Information
| Model | WK200SLUX |
| Output kW | 24,1 |
| Sauna room min. cu. ft. (m3) | 283 (8) |
| Sauna room max. cu. ft. (m3) | 706 (20) |
| Stone capacity max. lbs (kg) | 88 (40) |
| Dimensions width in (mm) | 17 (430) |
| Dimensions height in (mm) | 30 (760) |
| Dimensions depth in (mm) | 20 + 11 (510 + 280) |
| Weight lbs (kg) | 176 (80) |

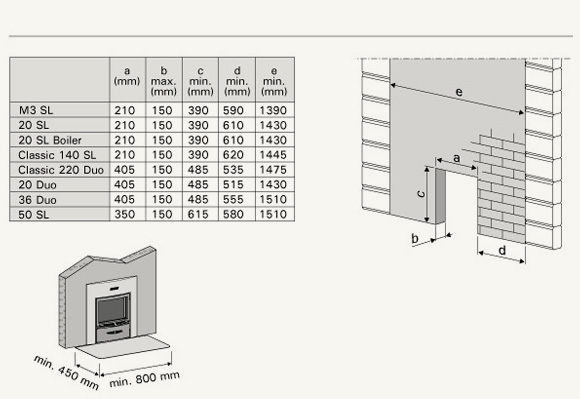

| Safety distance to sides and back, masonry walls E, in (mm) | 2 (50)* |
| Safety distance to sides (B) and back (C), walls and benches made of inflammable materials, in (mm) | 11 7/8 (300) |
| Safety distance to front (D) in (mm) | 11 7/8 (300) |
| Safety distance from upper surface to ceiling A min. in (mm) | 51 1/8 (1300) |
| Fire chamber cover in (mm) | 3/8 (10) |
| Diameter of smoke outlet in (mm) | 4 1/2 (115) |
| * Leave 2″ (50 mm) between the stove and walls, provided that the air can circulate in front and to one side of the stove. If the stove is installed in a recessed wall, leave 4″ (100 mm) between the stove and walls for the air circulation. |
| Weight | 188 lbs |
|---|---|
| Dimensions | 32 × 24.5 × 34 in |
You may also like…
In stock
The Harvia steel chimney with an accessory kit offers a stylish, stainless steel solution that is easy to install.
The chimney withstands extensive temperature changes and is ideal for wood-heated wood-burning heaters, smaller fireplaces, and iron wood-burning heaters in detached sauna buildings.The standard delivery includes the steel chimney, a utility box with 1.0 m of non-insulated smoke pipe, a rain cap, and a rubber rain flange.
It also includes an installation set for the rain flange. It also comes with a stainless steel lead-through flange for the ceiling, along with lead-through insulation and a protector. Thanks to its ingenious joint mechanism, you can easily extend the steel chimney. Choose top-of-the-line Harvia quality.
Read More
In stock
The water tank of the pipe model (22 l) mounts directly onto the stove. The pipe-mounted water heater draws heat energy from the hot combustion gases of a wood-burning stove. These gases pass through the smoke pipe in the heater and continue to the chimney.
Since the pipe model heats water efficiently and quickly, it often reaches boiling point when the stove is in use. To prevent boiling, remove some warm water and add cool water instead.
- Always keep the heater as full as possible. It fits all Harvia wood-burning stoves except the Harvia 50.
