Harvia 50 SL
Out of stock
Description

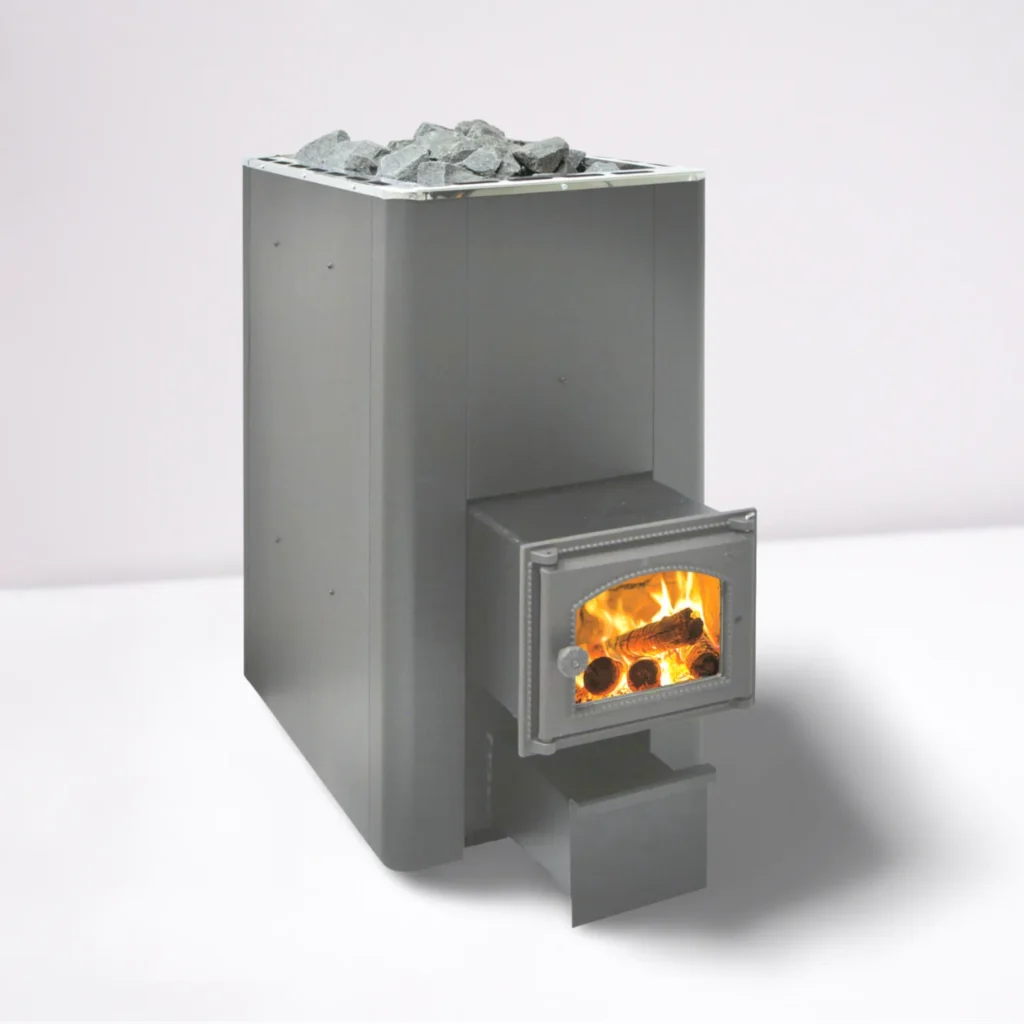

Harvia 50 SL
SL stoves – Ease of use reaches a new level.
The Harvia 50 SL models are designed for people who want to conveniently heat their sauna from another room or outside the building. The opening direction of the door can be changed, making these stoves even easier to use. SL stoves provide great bathing in small and medium-sized saunas.
Technical Information
| Model | WK500SL |
| Output kW | 40 |
| Sauna room min. cu. ft. (m3) | 706 (20) |
| Sauna room max. cu. ft. (m3) | 1766 (50) |
| Sauna room height min. in (mm) | 88 1/2 (2250) |
| Stone capacity max. lbs (kg) | 265 (120) |
| Dimensions width in (mm) | 20 (510) |
| Dimensions height in (mm) | 41 3/8 (1050) |
| Dimensions depth in (mm) | 28 1/8 + 7 5/8 (715 + 195) |
| Weight lbs (kg) | 386 (175) |
| Safety distance to sides and back in (mm) | 19 5/8 (500) |
| Safety distance to front in (mm) | 19 5/8 (500) |
| Safety distance from upper surface to ceiling min. in (mm) | 47 1/4 (1200) |
| Fire chamber cover in (mm) | 3/8 (10) |
| Location of smoke outlets on top: from rear edge to center of hole in (mm) | 22 7/8 (580) |
| Diameter of smoke outlet in (mm) | 5 1/2 (140) |
Installation Instructions
Read and follow at all times the Instructions for installation and use and the SL/DUO Instructions for installation and use at all times.
Required for this product
| Weight | 455 lbs |
|---|---|
| Dimensions | 31.5 × 47.5 × 49 in |
